SXD8804-B
Product Introduction：

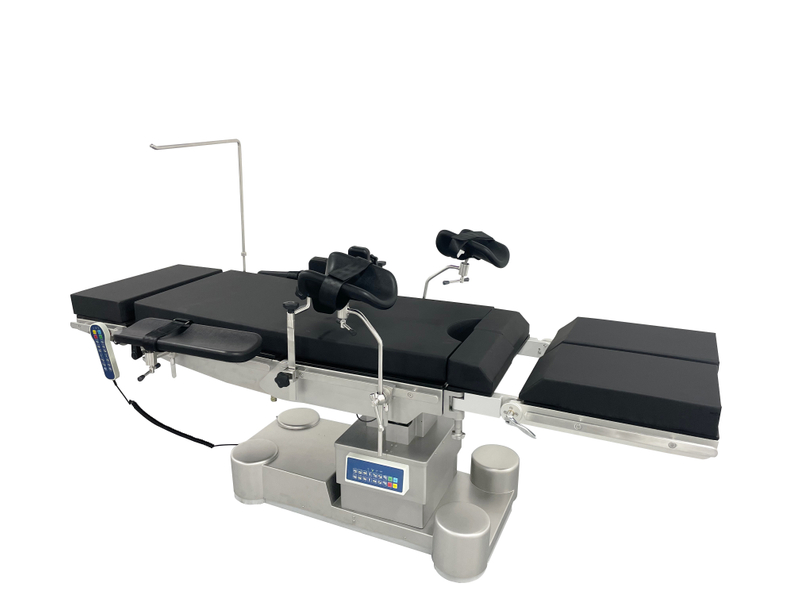

Comprehensive multi-functional operating table, suitable for orthopedics, gynecology, eye, ear, nose, throat, urology and other surgeries;
The main material is SUS304 stainless steel, strong and rigid;
Table lifting, rising, falling, forward leaning, backward leaning, left leaning, right leaning, back up, translation using electric control, smooth operation, convenient;
Low lift, table lifting stroke up to 450mm, there is sufficient space to use with C-arm; Suitable for neurosurgery
The table can be translated lengthwise >300mm, no blind area;
Electric brake lock, easy to transport, shift, clean;
Equipped with built-in emergency power supply to ensure the normal use of the operating bed in the case of power failure;
Built-in waist bridge lifting, waist bridge lifting 120mm, to meet the needs of lumbar spine, spine, gall kidney and other operations;
One key buckling anti-buckling;
One-button automatic level return, conducive to emergency treatment;
The bed is made of memory sponge mattress, easy to clean and disinfect;

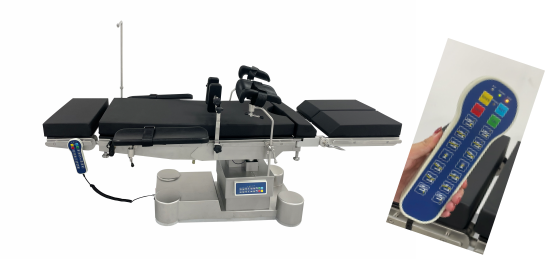

The manual controller and the column panel controller are two independent systems to control the operation of the operating table, providing smooth and accurate operation, easy operation, safe and reliable;
The operating table is equipped with international standard side rails, which can be matched with various functional accessories to suit the needs of different surgeries.
Double joint pillow head plate.
Technical parameters:
Trendelenburg | ≥25° |
Lateral tilt | left≥20° , right≥20° |
Back | upward≥75° , downward ≥40° |
Headboard | Upward≥40° , downward≥80° lifting≥100mm |
Legboard | Upward≥15° , downward≥90° outward≥90° |
Table top dimension | Length≥2100mm Width≤550mm（without rails） |
Lowest height | ≤550mm |
Kidney bridge | ≥120mm |
Translating | ≥300mm |
Lifting | ≥450mm |
Load | ≥450mm |
Different Positions:
 |  |  |
 |  |  |
 |  |  |
|
|
