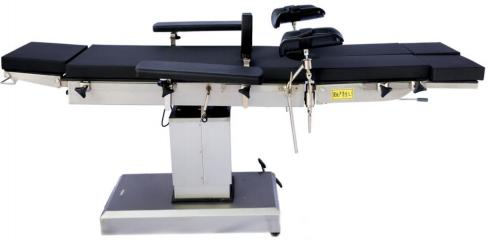

SXD8801
一、Product Introduction：
SXD8801 is suitable for surgeries of head, neck, thorax, abdomen, perineum and limbs as well as for obstetrics, ophthalmology, otolaryngology, orthopedics and other operations. The table top is radiolucent so that X ray examination 1s available with the help of C-ARM. The table with head
plate, back plate, seat plate and two detachable leg plates five sections.
二、Unique features：
1、The bed surface is antistatic and has excellent X-ray fluoroscopy performance. The bed plate are made of X-ray materials.
2 、The leg plate down folding adopts the air spring and gravity compensation to operate easily.
3 、The horizontal sliding distance exceeds 400mm which provides a better X-ray area.
4 、The table adopts hand-held operating system to ensure no failure operation. It can realize
precise linear motion and circular motion, and adopts waterproof cap design to prevent sewage, dirt and static electricity to make it easily movable.

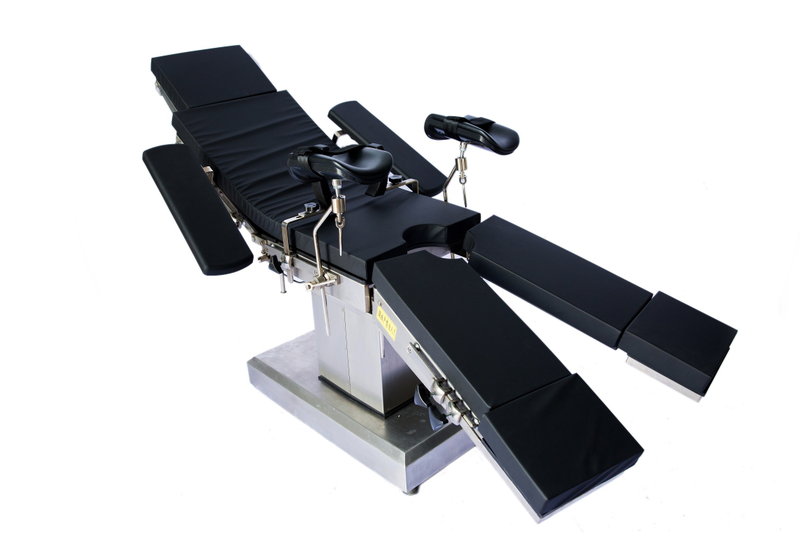

5 、The detachable leg plate is so convenient for urology surgeries to rotate outwards manually, adjust and fold.
6、The table plate is made of high quality acrylic material, the mattress with polyurethane mattress, corrosion-resistant, not easy to damage, antibacterial, anti-static, can effectively prevent patients
from bedsore.
7 、The detachable head plate provides a more flexible operating room；
8 、The table is mainly made of stainless steel, easy to clean and anti-pollution.
9 、This device base can be fixed or moved freely and also with the mute caster.
10 、The table with lifting, Trendelenburg, reverse Trendelenburg, lateral tilt motions and horizontal sliding five motions.
11 、The electronic control part is composed of power source and button box, this table is optional with high-performance rechargeable battery, which can meet twenty times surgeries requirement, it
also has AC power supply to provide power to ensure maximum safety at the same time.
12 、Device with front brake system to make doctors lock the operating table easily.
13 、The product with ISO9001, 13485 and CE standard.
三、Technical parameters.：
Table size | 2100 ( ±20）×500 ( ±20）mm |
Table height | 750(±20) -1000±20) mm |
Lateral tilt | ≥20°electrical motion |
Trendelenburg& reverse trendelenburg | ≥25° electrical motion |
Back plate up folding | ≥70° |
Head plate adjustment | ≥30°--90° |
Kidney bridge adjustment | ≥120 mm |
Electric horizontal sliding | ≥400mm |
Leg plate | ≥90° |
四、Configuration:
No | Accessories name | Qty | Qty |
| 1 | Table body | 1 | set |
| 2 | Mattress | 1 | set |
| 3 | Motor | 6 | sets |
| 4 | Anesthetic screen | 1 | set |
| 5 | Hand support | 2 | pcs |
| 6 | Leg support | 2 | pcs |
| 7 | Kidney bridge | 2 | pcs |
| 8 | Hand remoter | 1 | pc |
| 9 | Slippage system | 1 | set |
| 10 | Power supply cable | 1 | pc |
| 11 | Operation manual | 1 | set |
