SXD8805
一、Product introduction：

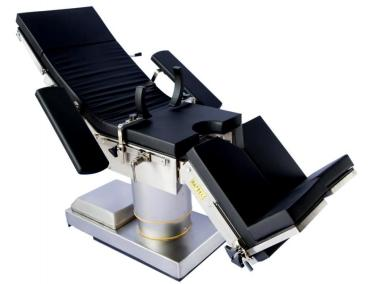

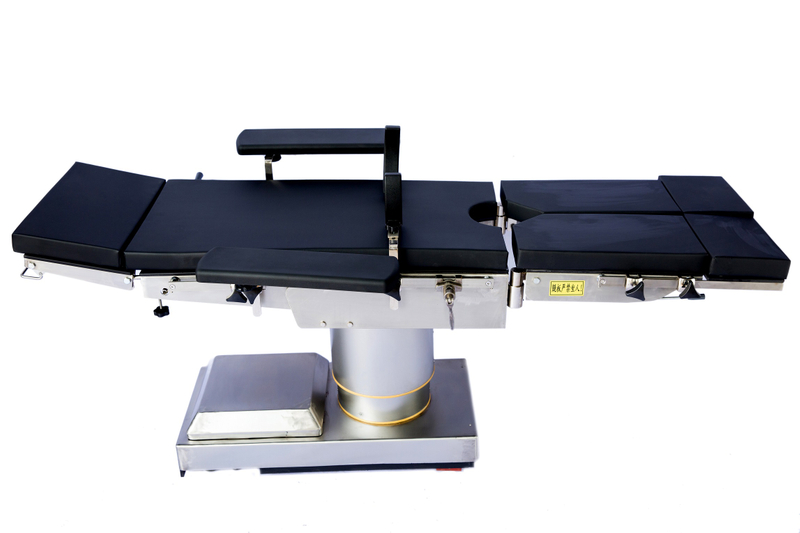

SXD8804-B is developed independently by our company with innovative and advanced
technology at board, the table is a comprehensive electric-hydraulic one with high-quality and
multi-purposes, which takes the leading position in the domestic market. With the special design, the table can be used in all kinds of operations.
二、 Unique features：
1 、The table top can be moved vertically. The table board is made of high-high-intensity synthesis panel which can be X-Rayed with C-ARM during operations. The table also has electro-hydraulic brake system.
2 、The round cover body and the base are all made of stainless steel which is waterproof, dust
proof, good looking, stable and useful. This operation table with electro-hydraulic system has lower noise and reliable performance
3 、Built-in emergency power supply is optional, which can charge and work automatically when the power goes off.
4 、The table lifting, Trendelenburg &reverse Trendelenburg, lateral tilt and back plate up folding are all controlled by electric hydraulic servo, this servo are installed by imported magnetic valve and oil pump system. Lifting, Trendelenburg &reverse Trendelenburg, lateral tilt and back plate up folding are achieved by electric hydraulic handspike, horizontal sliding and braking are achieved by electric handspike.
三、Technical parameters：
Table size | 2040 (±20）×500 (±20）mm |
Table height | 700(±20)—1050(±20) mm |
Lateral tilt | ≥25°electrical motion |
Trendelenburg& reverse trendelenburg | ≥25° electrical motion |
Back plate up folding | ≥75° |
Back plate down folding | ≥30 ° |
Head plate adjustment | ≥90° |
Kidney bridge adjustment | ≥120 mm |
Electric horizontal sliding | ≥340mm |
Leg plate outwards | ≥90° |
四、Configuration :
No | Accessories name | Qty | Unit |
| 1 | Table body | 1 | set |
| 2 | Mattress | 1 | set |
| 3 | Motor | 6 | sets |
| 4 | Anesthetic screen | 1 | set |
| 5 | Hand support | 2 | pcs |
| 6 | Leg support | 2 | pcs |
| 7 | Kidney bridge | 2 | pcs |
| 8 | Hand remoter | 1 | pc |
| 9 | Slippage system | 1 | set |
| 10 | Slippage system | 1 | pc |
| 11 | Guarantee/warranty card | 1 | set |
| 12 | Operation manual | 1 | set |
