SXD8804
一、Product Introduction：

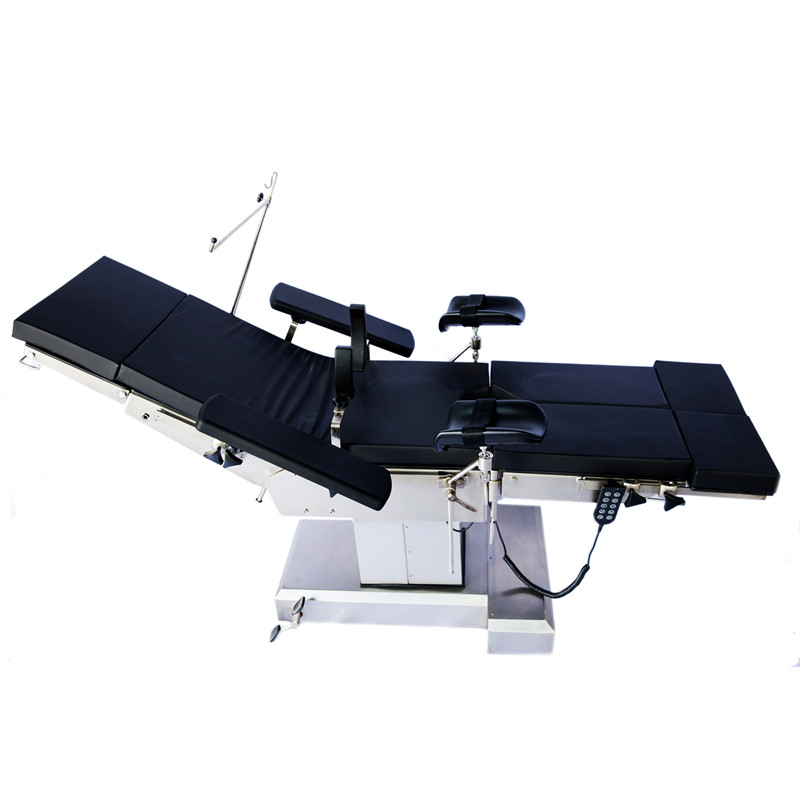

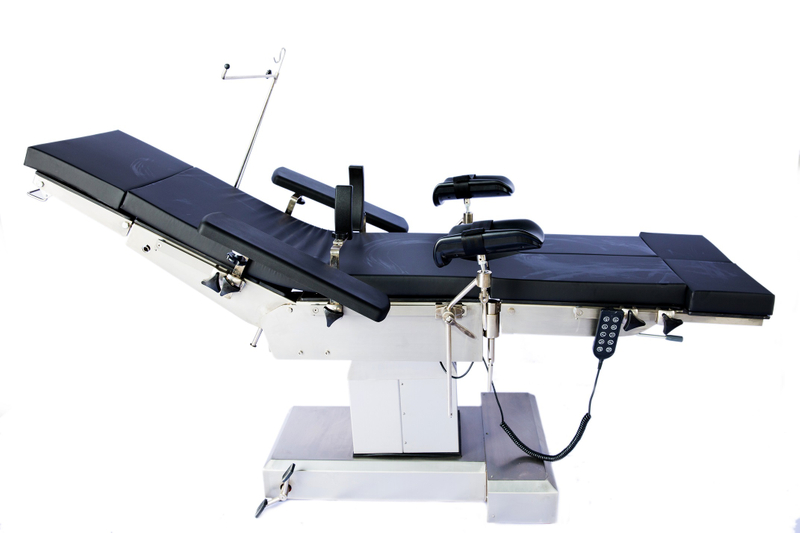

SXD8804 is suitable for surgeries of head, neck, thorax, abdomen, perineum and limbs as well as for obstetrics, ophthalmology, otolaryngology, orthopedics and other operations. The table top is radiolucent so that X ray examination is available with the help of C-ARM. The table with head plate, back plate, seat plate and two detachable leg plates five sections.
二、Unique features：
The horizontal sliding distance exceeds 340mm which provides a better X-ray area.
The table plate is made of stainless steel material, the mattress with foam sponge, easy to clean, corrosion-resistant, not easy to damage, antibacterial, anti-static, can effectively prevent patients from bedsore.
he table adopts hand-held operating system to ensure no failure operation. It can realize precise linear motion and circular motion, and adopts waterproof cap design to prevent sewage, dirt and static electricity to make it easily movable.
The table is mainly made of stainless steel, easy to clean and anti-pollution.
This T-type base with more stable feature and can be fixed or moved freely with the mute caster.
Lifting, Trendelenburg, reverse Trendelenburg, lateral tilt、horizontal sliding and back plate up folding are motivated by electric system, this system is composed with controller and electric handspike. Head plate, leg plate and back plate rotating are controlled by gas spring.
The electronic control part is composed of power source and button box.
The head plate adjustable range is between 30-90° which provides a best position for operation.
Device with front brake system to make doctors lock the operating table easily.
this table is optional with high-performance rechargeable battery, which can meet fifty times surgeries requirement, it also has AC power supply to provide power to ensure maximum safety at the same time.
The product with ISO9001, 13485 and CE standard.
三、Technical parameters：
Table size | 2100（±20）×550（±20）mm |
Table height | 700(±20) |
Lateral tilt | ≥20°electrical motion |
Trendelenburg& reverse trendelenburg | ≥20° electrical motion |
Back plate adjustment | ≥70° |
Head plate adjustment | ≥30°-90° |
Kidney bridge adjustment | ≥120 mm |
Electric horizontal sliding | ≥300mm |
Leg plate adjustment | ≥90° |
Leg plate outwards | ≥90° |
Max load capacity | 200kgs |
Translational function | Yes |
四、Configuration:
| NO | Accessories name | Qty | Unit |
| 1 | Table body | 1 | set |
| 2 | Mattress | 1 | set |
| 3 | Motor | 6 | sets |
| 4 | Anesthesia screen frame | 1 | set |
| 5 | Hand support | 2 | pcs |
| 6 | Leg support | 2 | pcs |
| 7 | Kidney bridge | 2 | pcs |
| 8 | Hand remoter | 1 | pc |
| 9 | Slippage system | 1 | set |
| 10 | Power supply cable | 1 | pc |
| 11 | Operation manual | 1 | pc |
