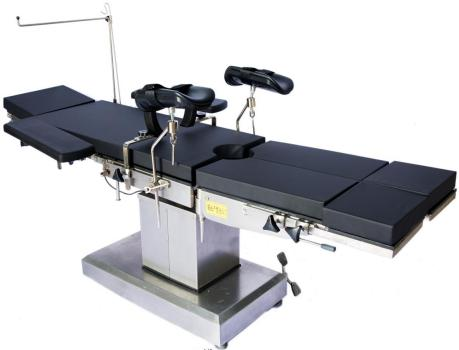

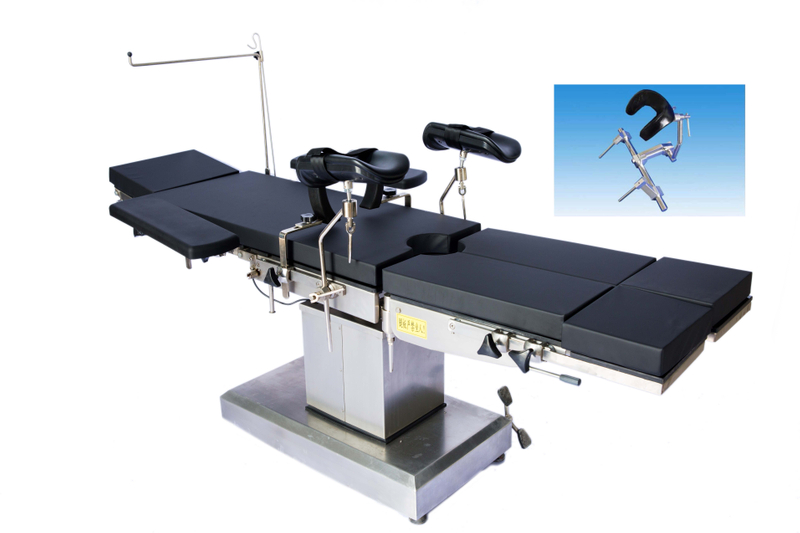

SXD8802
一、 Product Introduction：
SXD8802 is suitable for abdominal, brain, ophthalmology, otolaryngology, obstetrics, gynecology and urology surgeries.
二、Unique features：
1 、The table plate is made of high quality acrylic material, the mattress with polyurethane material, corrosion-resistant, not easy to damage, antibacterial, anti-static, can effectively prevent patients
from bedsore.
2 、The detachable leg plate is so convenient for urology surgeries to rotate outwards manually, adjust and fold；
3 、The detachable head plate provides a more flexible operating room；
4 、The table is mainly made of stainless steel, easy to clean and anti-pollution.
5 、This device base can be fixed or moved freely and also with the mute caster.
6| 、The leg plate down folding adopts the air spring and gravity compensation to operate easily. 7、Table lifting, Trendelenburg, reverse Trendelenburg, lateral tilt motions and back plate up
folding these motions are controlled by buttons.
8 、 The electronic control part is composed of power source and button box, this table is optional with high-performance rechargeable battery, which can meet twenty times surgeries requirement, it also has AC power supply to provide power to ensure maximum safety at the same time.
9 、Device with front brake system to make doctors lock the operating table easily.
10 、The table with head plate, back plate, seat plate and two detachable leg plates five sections.
三、Technical parameters.
Table size | 2100 ( ±20）×500 ( ±20）mm |
Table height | 700(±20)-1000(± 20) mm |
Lateral tilt | ≥20°electrical motion |
Trendelenburg& reverse trendelenburg | ≥25° electrical motion |
Back plate up folding | ≥80° |
Head plate adjustment | ≥30°--90° |
Kidney bridge adjustment | ≥120 mm |
Leg plate | ≥90° |
Leg plate outwards | ≥90° |
四、Configuration:
| NO | Accessories name | Qty | Unit |
| 1 | Table body | 1 | set |
| 2 | Mattress | 1 | set |
| 3 | Motor | 4 | sets |
| 4 | Anesthetic screen | 1 | set |
| 5 | Hand support | 2 | pcs |
| 6 | Leg support | 2 | pcs |
| 7 | Kidney bridge | 2 | pcs |
| 8 | Hand remoter | 1 | pc |
| 9 | Power supply cable | 1 | pc |
| 10 | Guarantee/warranty card | 1 | set |
| 11 | Operation manual | 1 | set |
