SXS2002-C
一、Product Introduction：

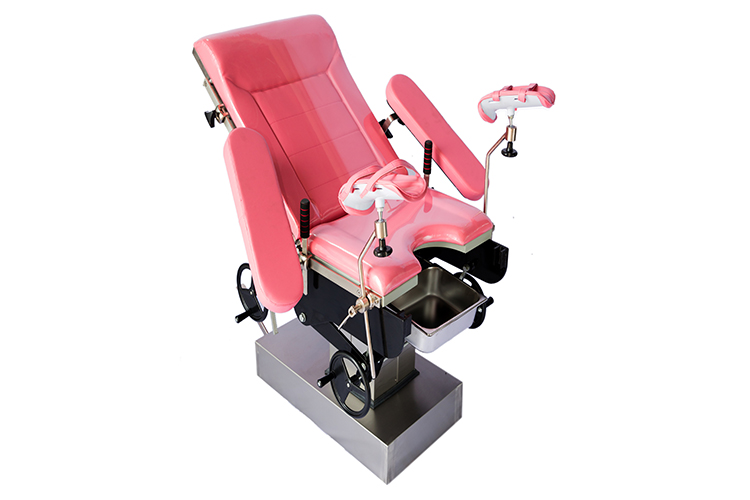

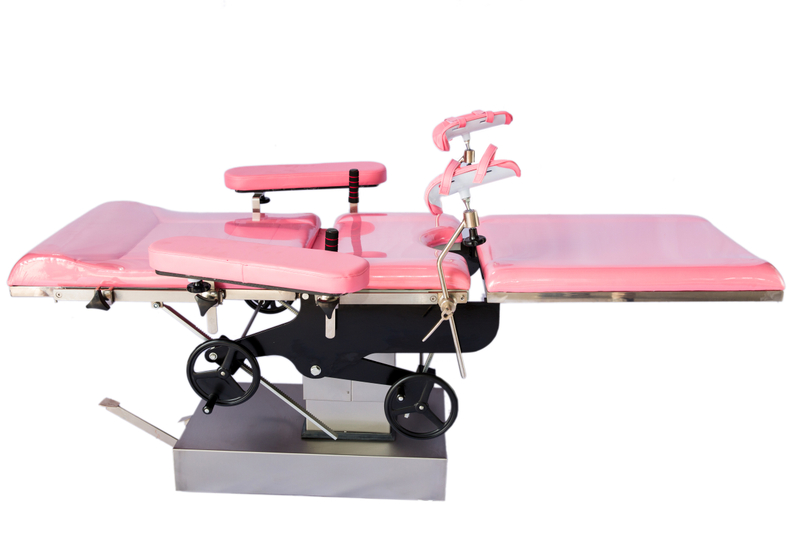

SXS2002-C is used for gynecological examination, operation and parturient delivery in hospitals.
二、Unique features：
1 、 The table adopts hydraulic lifting system, Trendelenburg& reverse Trendelenburg and back folding motions are realized by worm, gear and rack transmission structure.
2 、All motions can be rotated and locked conveniently in a defined limits.
3 、Base and shield are made of stainless steel, easy to clean and anti-pollution.
三、Technical parameters：
Table size | 2000 ( ±20）×600 ( ±20）mm |
Table height | 700(±20) mm |
Table lifting motion | 250mm |
Trendelenburg& reverse trendelenburg | ≥25° |
Back plate up folding | ≥60 °-7 ° |
四、Configuration：
No | Accessories name | Qty | Unit |
| 1 | Table body | 1 | set |
| 2 | Mattress | 1 | set |
| 3 | Anesthetic screen frame | 1 | pc |
| 4 | Hand support | 2 | pcs |
| 5 | Leg support | 2 | pcs |
| 6 | Table body | 2 | pc |
| 7 | Dirt basin | 1 | pc |
| 8 | Operation manual | 1 | pc |
一、Product Introduction：
SXS2002-C is used for gynecological examination, operation and parturient delivery in hospitals.
二、Unique features：
1 、 The table adopts hydraulic lifting system, Trendelenburg& reverse Trendelenburg and back folding motions are realized by worm, gear and rack transmission structure.
2 、All motions can be rotated and locked conveniently in a defined limits.
3 、Base and shield are made of stainless steel, easy to clean and anti-pollution.
三、Technical parameters：
Table size | 2000 ( ±20）×600 ( ±20）mm |
Table height | 700(±20) mm |
Table lifting motion | 250mm |
Trendelenburg& reverse trendelenburg | ≥25° |
Back plate up folding | ≥60 °-7 ° |
四、Configuration：
No | Accessories name | Qty | Unit |
| 1 | Table body | 1 | set |
| 2 | Mattress | 1 | set |
| 3 | Anesthetic screen frame | 1 | pc |
| 4 | Hand support | 2 | pcs |
| 5 | Leg support | 2 | pcs |
| 6 | Table body | 2 | pc |
| 7 | Dirt basin | 1 | pc |
| 8 | Operation manual | 1 | pc |
