SXD8804-III
一、Product Introduction：
SXD8805 is used for obstetrics childbirth and normal gynecology operations, especially suitable for examinations of medical instruments and lens diagnosis of obstetrics and urology.
二、Unique features：

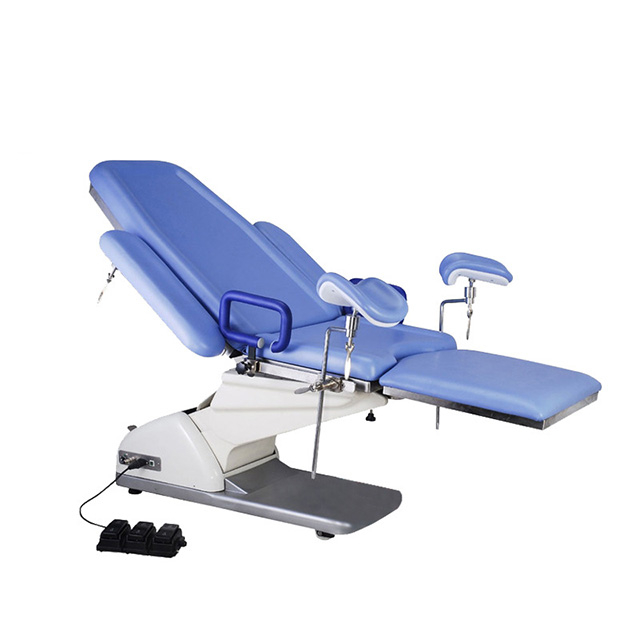

1 、 The comprehensive gynecological operating table is composed of back plate, seat plate and leg plate these three sections; The auxiliary table and dirt basin are embedded under the table which
can be pulled out or took back easily. It is also very convenient to deal with these sewages.
2、Table lifting, up folding of seat plate and back plate are all controlled by electric handspike, it is full electric motive and with foot control operation mode. The waterproof level is not lower than
IP54.
3、The table adopts a high strong ABS material which is beautiful and easy to clean.
4、Leg support is adjustable and can be locked firmly. The adjustable universal head is installed, the height adjustment is not lower than 300mm.
5、The table adopts hand-held operating system to ensure no failure operation. It can realize precise linear motion and circular motion, and adopts waterproof cap design to prevent sewage, dirt and static electricity to make it easily moveable.
6 、Detachable handrail is optional to easy operation.
7 、The detachable anesthetic screen can be lifted and rotated freely.
8 、The embedded dirt basin with mute guide is convenient to be pulled out and pulled in.
9 、The universal caster with engineering plastic ABS material can load 200kgs and move silently.
三、Technical parameters：
Table size | 1800 ( ±20）×600 ( ±20）mm |
Height | 600-900 (±20) mm |
Mttress | 6cm |
Lifting | 300mm |
Back plate up folding | ≥80° |
Seat plate up folding | 30° |
Power supply | AC 220V 、50HZ |
Bed max load capacity | 200Kg |
四、Configuration:
No | Accessories name | Qty | Unit |
| 1 | Table body | 1 | set |
| 2 | Mattress | 1 | set |
| 3 | Motor | 3 | sets |
| 4 | Anesthetic screen | 1 | pc |
| 5 | Leg support | 2 | pcs |
| 6 | Handle | 2 | pcs |
| 7 | Dirt basin | 1 | pc |
| 8 | Arm support | 2 | pcs |
| 9 | Foot controller | 1 | pc |
| 10 | Power supply cable | 1 | pc |
| 11 | Operation manual | 1 | set |
