SXD8802-B
Suxin
9402900000

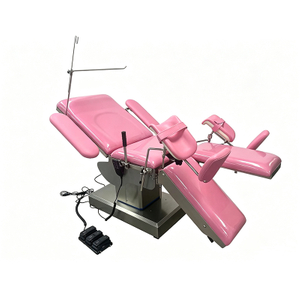

SXD8802-B electric obstetric table is equipped with the advanced technology of similar products in the world. It has multiple medical functions such as parturition, gynecological operation, diagnosis and examination, including emergency abdominal planning.
Unique features：
1、Table lifting, Trendelenburg , reverse trendelenburg and back upfolding, are powered by the electric handspike of world famous brand, which has the advantages of low noise and stable performance.
2、It is equipped with an embedded movable auxiliary table, which is convenient for medical staff to
operate , and the mattress is seamless and closely combined.
3、The base fixation or movement operated by hand controller.
4、All shields, platform panels and dirt basins are made of high quality stainless steel, with beautiful appearance, easy cleaning and disinfection features.
5、Mattress is made of foam sponge, easy to clean, corrosion-resistant, not easy to damage, antibacterial, anti-static, can effectively prevent patients from bedsore.
6、Mute caster is easy to move.
7、Device with front brake system to make doctors lock the operating table easily.
8、The obstetric table can be equipped with high-performance rechargeable battery（optional）, which can meet fifty times surgeries requirement, it also has AC power supply to provide power to ensure maximum safety at the same time.
9、The bed is composed of back plate, seat plate and auxiliary table three sections.
Technical parameters：
Table size | 1900（±20）×600（±20）mm |
Height | Minimum height 700 (±20) mm |
Lifting | 250mm |
Trendelenburg | ≥25 ° |
Reverse trendelenburg | ≥25 ° |
Back plate up folding | ≥70° |
Power supply | 220v, 50Hz |
Load capacity | 135kgs |
Configuration:
No | Accessories name | Qty | Unit |
1 | Table body | 1 | set |
2 | Mattress | 1 | set |
3 | Motor | 3 | pcs |
| 4 | Anesthetic screen | 1 | set |
5 | Hand support | 2 | pcs |
6 | Leg support | 2 | pcs |
7 | Hand remoter | 1 | pc |
8 | Handle | 2 | pcs |
9 | Power supply cable | 1 | pc |
10 | Dirty base | 1 | pc |
11 | Operation manual | 1 | set |
SXD8802-B electric obstetric table is equipped with the advanced technology of similar products in the world. It has multiple medical functions such as parturition, gynecological operation, diagnosis and examination, including emergency abdominal planning.
Unique features：
1、Table lifting, Trendelenburg , reverse trendelenburg and back upfolding, are powered by the electric handspike of world famous brand, which has the advantages of low noise and stable performance.
2、It is equipped with an embedded movable auxiliary table, which is convenient for medical staff to
operate , and the mattress is seamless and closely combined.
3、The base fixation or movement operated by hand controller.
4、All shields, platform panels and dirt basins are made of high quality stainless steel, with beautiful appearance, easy cleaning and disinfection features.
5、Mattress is made of foam sponge, easy to clean, corrosion-resistant, not easy to damage, antibacterial, anti-static, can effectively prevent patients from bedsore.
6、Mute caster is easy to move.
7、Device with front brake system to make doctors lock the operating table easily.
8、The obstetric table can be equipped with high-performance rechargeable battery（optional）, which can meet fifty times surgeries requirement, it also has AC power supply to provide power to ensure maximum safety at the same time.
9、The bed is composed of back plate, seat plate and auxiliary table three sections.
Technical parameters：
Table size | 1900（±20）×600（±20）mm |
Height | Minimum height 700 (±20) mm |
Lifting | 250mm |
Trendelenburg | ≥25 ° |
Reverse trendelenburg | ≥25 ° |
Back plate up folding | ≥70° |
Power supply | 220v, 50Hz |
Load capacity | 135kgs |
Configuration:
No | Accessories name | Qty | Unit |
1 | Table body | 1 | set |
2 | Mattress | 1 | set |
3 | Motor | 3 | pcs |
| 4 | Anesthetic screen | 1 | set |
5 | Hand support | 2 | pcs |
6 | Leg support | 2 | pcs |
7 | Hand remoter | 1 | pc |
8 | Handle | 2 | pcs |
9 | Power supply cable | 1 | pc |
10 | Dirty base | 1 | pc |
11 | Operation manual | 1 | set |
