SXD8802
一、Product Introduction：

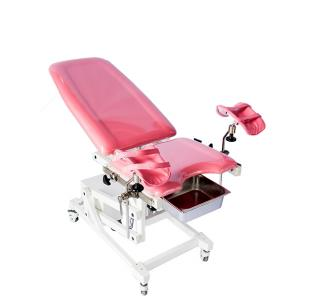

This device is suitable for surgeries of head, neck, thorax, abdomen, perineum and limbs aswell as for obstetrics, ophthalmology, otolaryngology, orthopedics and other operations.
二、Unique features：
1 、The utility model has the characteristics of comprehensive multi-function, light and flexible, practical and cheap.
2 、The table adopts hand-held operating system to ensure no failure operation. It can realize precise linear motion and circular motion, and adopts waterproof cap design to prevent sewage, dirt and
static electricity to make it easily moveable.
3 、SXD8802-A is mainly made of stainless steel with power coating surface treatment ，easy to clean andanti-pollution.
4 、Mattress is made of foam sponge, easy to clean, corrosion-resistant, not easy to damage, antibacterial, anti-static, can effectively prevent patients from bedsore.
5 、Mute caster is easy to move.
6 、Device with front brake system to make doctors lock the operating table easily.
7 、This table seat plate can be up folded, the max angle can be up to 15° .
8 、The auxiliary table is detachable type（optional).
9 、With optional foot controller.
10 、The obstetric table can be equipped with high-performance rechargeable battery（optional), which can meet fifty times surgeries requirement, it also has AC power supply to provide power to ensure maximum safety at the same time.
11 、The product with ISO 9001 、13485 and IEC standard.
三、Technical parameters：
Table size | 1850×600mm,without leg plate, table size 1350*600mm |
Height | minimum height 600mm ，maximum height 1000mm |
Lifting | 400mm |
Seat plate up folding | ≥15° |
Dirt basin | Stainless steel |
Back plate up folding | ≥75° |
Back plate down folding | ≥3° |
Leg plate | Detachable |
Bed max load capacity | 200Kg |
四、Configuration :
No | Accessories name | Qty | Unit |
| 1 | Table body | 1 | set |
| 2 | Mattress | 1 | set |
| 3 | Motor | 3 | pcs |
| 4 | Leg support | 2 | pcs |
| 5 | Handle | 2 | pcs |
| 6 | Dirt basin | 1 | pc |
| 7 | Operation manual | 1 | pc |
