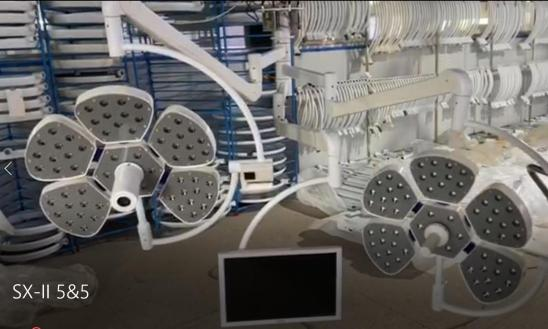

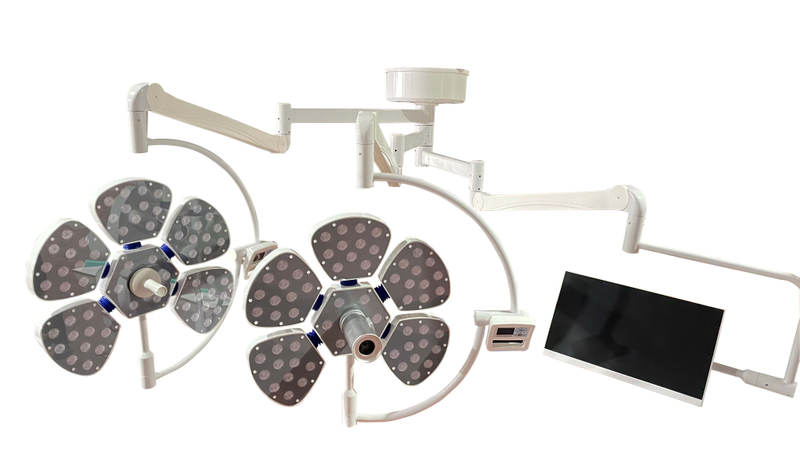

SX-II 5 5
一、Unique features：
1、The operation lamp adopts fully enclosed structure and streamlined design, which fully meets the requirements of laminar flow purification and sanitation in the operating room.
2、The professionally designed suspension system can make the surgical lamp fully natural positioning (no drift phenomenon) and meet the illumination of different surgical sites；The rotating arm can rotate 360°, it is flexible, portable.
3、Long service life up to 80,000h of the LED cold lighting source, bulb is not necessary to be replaced to ensure the maximum economy use and the environmental protection.
4、The device adopts Germany novel cold lighting, no infrared and ultraviolet radiation, no temperature raising on doctors head to achieve excellent cold light effect.
5、Humanized surface design with endoscope control mode to meet the different surgical lighting requirements in the hospital.
6、Color temperature is adjustable from 3700K to 5000K, this feature can make the diagnosis more accurately and reduce doctors visual fatigue.
7、Each LED is equipped with lens refracting and luminous system,in addition, the display optical layout design ensured the reliable and advanced optical parameters.
8、The overall design of LED lamp holder makes the light beam gather into a uniform light column with high brightness, which can ensure the soft and uniform deep gathering effect, and ensure the surgical requirements for high brightness and high depth lighting.
9、Button control mode can adjust the power switch, illumination and color temperature; digital memory function can remember the suitable illumination automatically, in this effect, when it is turned again, it is not necessary to debug.
二、Technical parameter：
Model | LED5/5 |
Illuminance（Lux） | 40000—160000 |
Color Temperature（K） | 3700—5000（adjustable） |
Spot Diameter（mm） | 150-300/150-300 |
Color Rendering Index (CRI) | ≥96 |
The depth of the irradiation(MM) | ≥ 1200 |
Brightness Adjustment Digital Display | 1%~ 100% |
Power supply and voltage | 220V/50Hz |
Input power ( W ) | 220 |
Temperature | ＜ 1℃ |
LED average life | ≥80000 h |
Best height installation | 2.8-3.2M |
三、 Configuration:
No | Item Name | QTY | Unit | Remark |
| 1 | Lampholder | 2 | sets | |
| 2 | Disinfection handle | 4 | pcs | |
| 3 | Lamp beads | 122 | pcs | |
| 4 | Balancer | 2 | sets | |
| 5 | Rotating arm | 1 | set | Double arms |
| 6 | Switch power supply assembly | 2 | sets | |
| 7 | Fixed base | 1 | set | |
| 8 | Shield | 1 | set | |
| 9 | Light tools | 1 | set | |
| 10 | Operating manual/warranty car | 1 | set |
